Traxxas 1/10 TRX4 Land Rover Defender RC Trail Crawler (Desert Sand) - 82056-4
Traxxas 1/10 TRX4 Land Rover Defender RC Trail Crawler (Desert Sand) - 82056-4
Take The Path Less Traveled
The Traxxas TRX-4 Scale and Trail Crawler is an all-new Traxxas design that is loaded with innovation that instantly obsoletes the status quo with exciting new features, versatility, and capability. In other words, we built it the Traxxas way, rugged, powerful, and ready for fun!
Underneath the authentic scale look is a machine built for extreme off-road capability that takes you to new places and new adventures. Exclusive portal axles deliver maximum ground clearance that dramatically turns no way into no problem. Whether you are enjoying outdoor trails or getting technical on the rocks, the remote-locking front and rear differentials and high/low range transmission provide unmatched driving versatility.
Features
Officially Licensed Land Rover Defender Body
Injection molded scale details including grille, snorkel, and side mirrors
Rugged, functional roll cage
Tough fender flares
Front bumper with tow hooks and replica winch
Rear bumper with scale accessories and functional spare tire
Full Nylon composite wheel wells and floor pans
Trail-tuned XL-5 HV Waterproof Electronic Speed Control
Fully waterproof design
Five drive profiles
Sport Mode forward / brake / reverse
Race Mode forward / brake / no reverse
Training Mode 50% forward / 100% brake / 50% reverse (patented)
Trail Mode forward / brake / reverse / with trail-tuned drag brake in neutral
Crawl Mode forward / instant reverse - no neutral with 100% hill holding brake
Traxxas EZ-Set one-button setup
Large, efficient heat sink
Wide voltage latitude 6 cell NiMH (7.28.4V) and 23S LiPo (7.411.1V)
Two stage low voltage protection (LVD)
Motor
Powerful Titan 21T reverse rotation motor with internal cooling fan
Precision, preset gear mesh adjustments
Motor retention separate from gear mesh
Portal Axles
Increase ground clearance (3.14)
Eliminate torque twist
Steel gears
Improve axle geometry and reduce strain on driveshafts
Rigid Steel Frame
1.5mm thick steel frame rails increase torsional rigidity

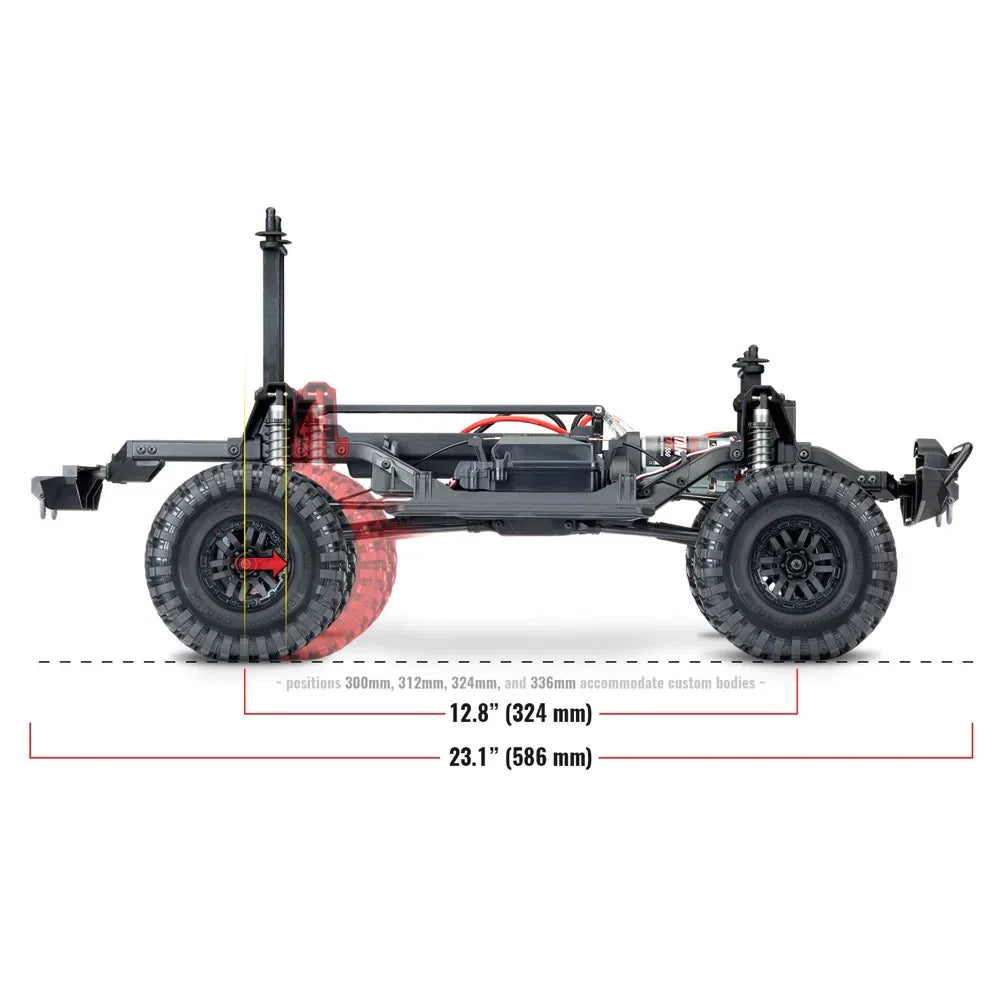

Innovative design allows four wheelbase positions (300mm, 312mm, 324mm, 336mm)
Adjustable rear shock tower positions for SWB and LWB configurations
Bumpers adjust fore and aft
Rugged rock rails adjust for width
Wire routing clips integrated into frame rails
Drivetrain
Full-time shaft driven 4-wheel drive
Tough 6mm stub axles
Steel front CV driveshafts
Hardened steel rear axle shafts
Remote locking steel gear differentials with cable-actuation
Steel gear transfer case
Innovative Battery Compartment
Hinged battery strap allows quick and easy battery access
No pins to lose
Accommodates different height batteries
Accepts full-size long battery packs
Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
Transmission
Two speed high/low range with remote shifting
Dual horizontal shafts
Twin friction plate slipper clutch
Easily removed for servicing
Steering
Chassis mounted 2075X metal gear digital servo
Superior 45 degree steering angle
Direct steering (no servo saver)
Steering geometry corrected for bump steer
Suspension
Front 3 link with panhard
Rear Triangulated 4 link
Heavy-duty rod ends with steel hollow balls
5mm diameter steel link rods with 4mm threaded ends
Aluminum GTS Shocks
Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
Silver-anodized aluminum bodies
Threaded bodies with collars easily adjust ride height
Silky smooth damping for the toughest trails
O-ring cap seal and dual X-ring shaft seals

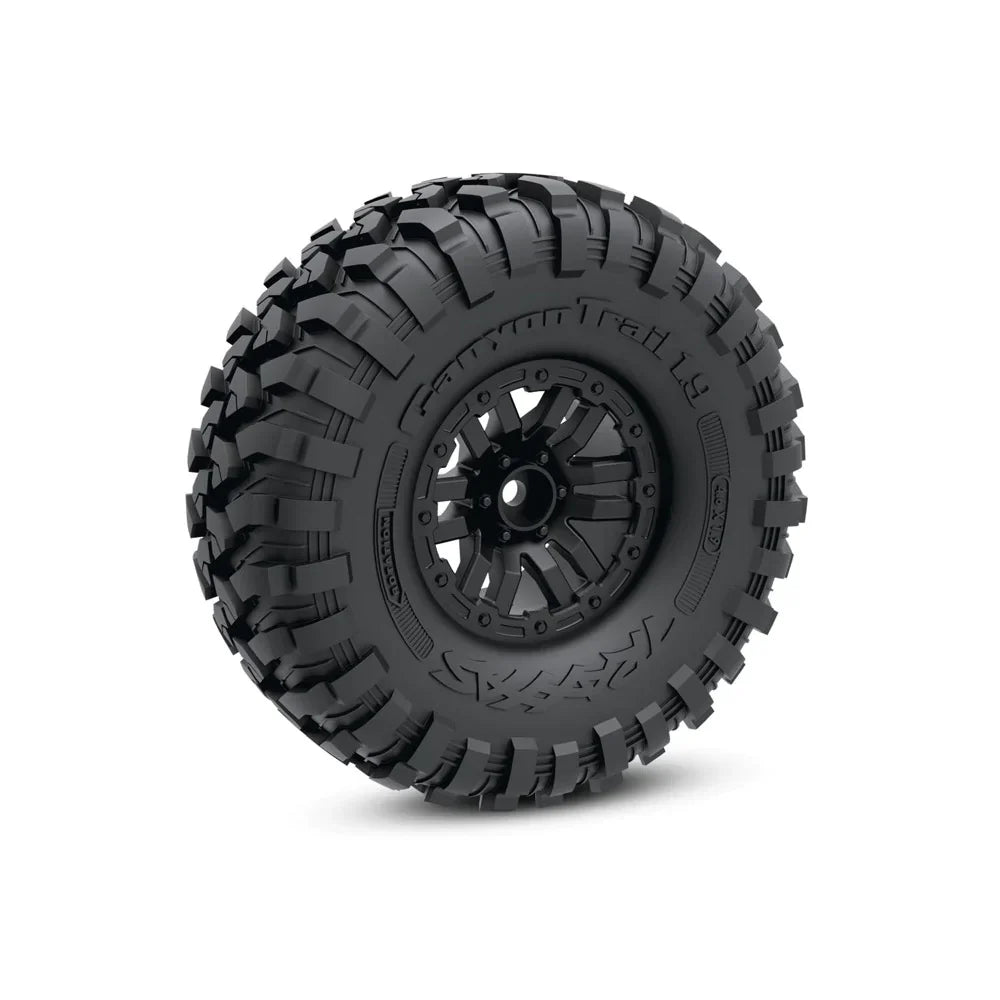

Wheels and Tires
1.9 Canyon Trail tires with trail-tuned foam inserts
Pre-glued and mounted to tough black scale wheels
Trail tuned S1 rubber compound
12mm steel hex

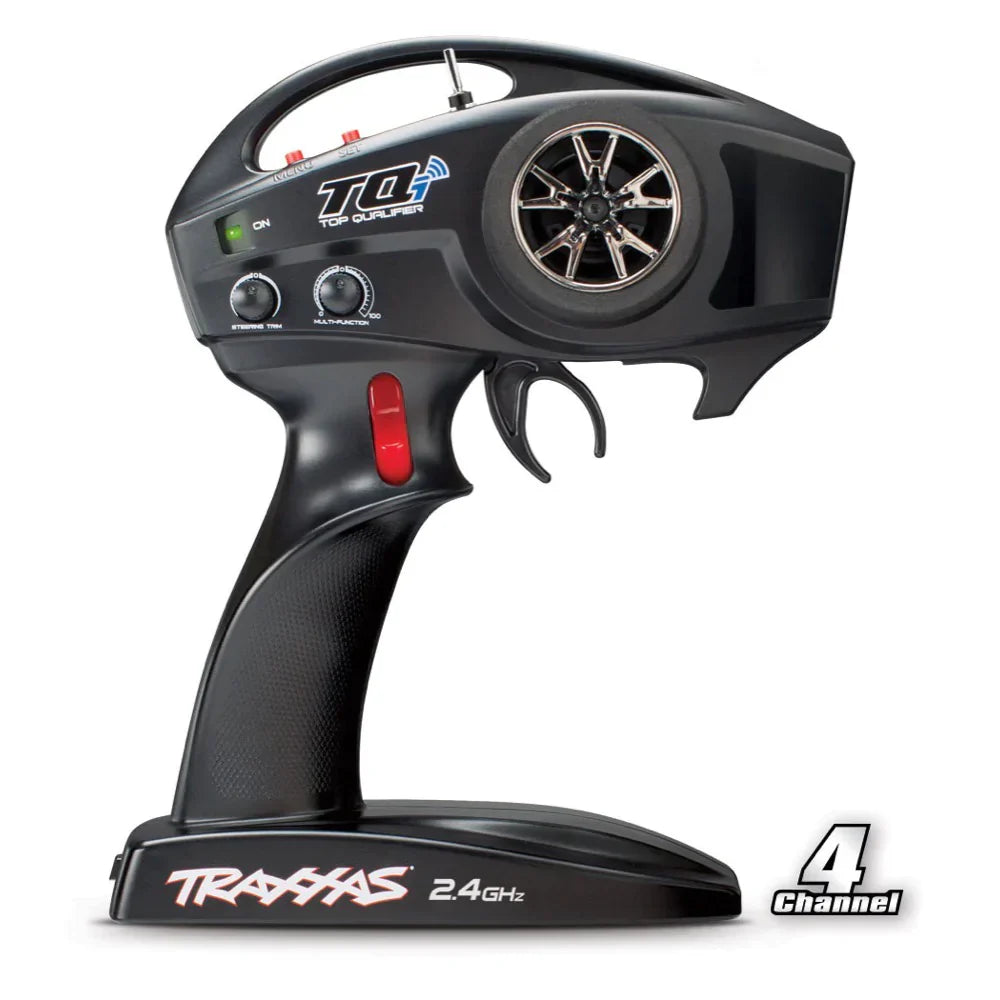

Transmitter
TQi 2.4GHz 4-channel transmitter
Traxxas Link enabled
Telemetry ready #6533 5-channel micro receiver with failsafe
Automatically stores and loads settings for up to 30 Traxxas Link enabled models
Exclusive Cruise Control feature for extended trail driving
Adjustable steering and throttle sensitivity (exponential)
Adjustable steering and throttle endpoints
High 13ms frame rate and near-zero latency for responsive control
Patented O-Ring sealed watertight receiver box keeps the micro receiver dry
Sealed Ball Bearings
Hex hardware with rust-resistant black oxide coating
Includes
TRX-4, Ready-To-Race model
XL-5 HV waterproof electronic speed control
Titan 21T reverse rotation motor
TQi 2.4GHz radio system with cruise control
High quality maintenance tools
Requires
Batteries
TRX-4 accepts a wide variety of NiMH (4 cell) and LiPo (2s, 3s) batteries.
Charger
Traxxas EZ-Peak Live charger is recommended for easy and fast charging performance (model #2971).
AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
